Replacement Parts



I always have people asking me about the availability of the glass hoppers for the wall mount coffee mills. I usually don't have any to spare as I would be giving up the chance to put together a complete grinder for myself. The cast iron bodies are fairly plentiful, but the glass hoppers are one of the parts that was frequently broken. I know of no replacements currently being made and it's not something you can pick up at Wally World so their value is almost the same as a complete grinder.



Reproduction Landers Frary and Clark Universal No. 24 Wall Mounting Bracket

Click on the pictures to enlarge

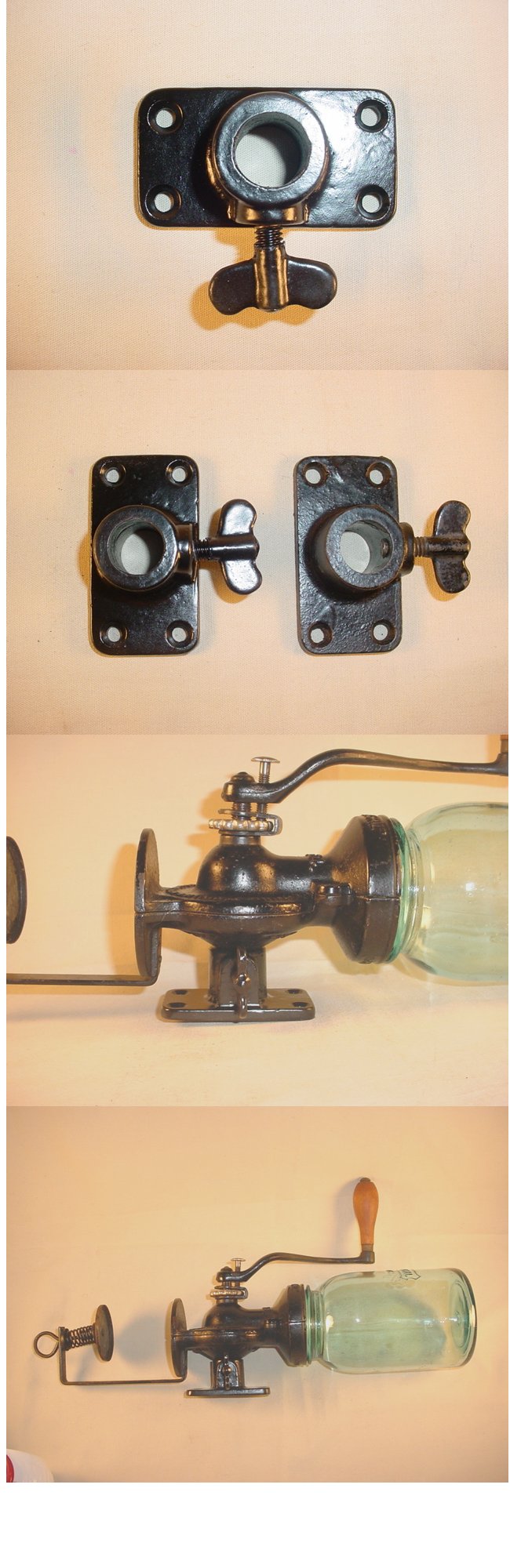

This is a cast alloy copy of the wall mounting bracket for a Landers Frary and Clark Universal No. 24. coffee grinder. It will complete your grinder and allow you to mount it as it was originally designed. When you click on the picture it is shown beside an original mount (which is on the right) in the second picture and mounted on a No. 24 in the last two pictures

Temporarily out of stock



Reproduction Arcade Crystal No. 3 Hopper



When purchased, I was told that these were produced in Western Europe in the 1970's. They are made of a very thick, heavy, wavy glass with a slight greenish tint that is embossed "Crystal No. 3". The base of these will thread onto the metal sleeve on the later Arcade No. 3's, but the top is smaller in diameter than an original so an Arcade lid will only sit on top rather than thread on. I only have two of these and after they're gone I don't think I'll be able to find any more.

$65.00 (Includes Shipping)

Sold



Catch Cups (Glass)



The horseshoe and star tumblers were manufactured by many different companies mostly in and around Indiana starting just after 1900 and were produced until at least the 1930's. As far as I know they were never produced as catch cups for coffee grinders, but over the years many have been put together or married with coffee grinders as they closely resemble the originals in size and style.

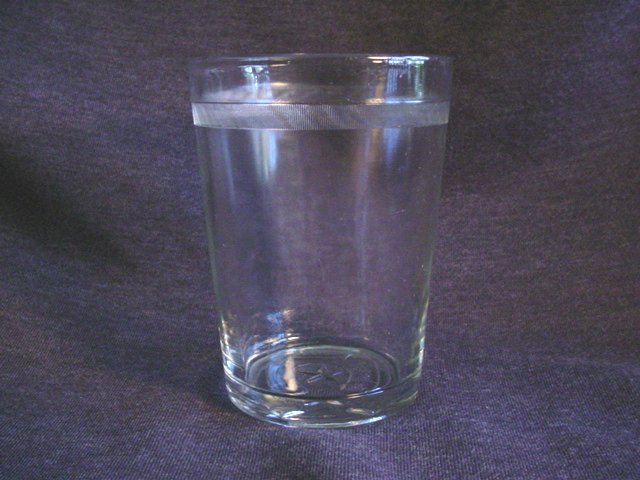

Horseshoe and star

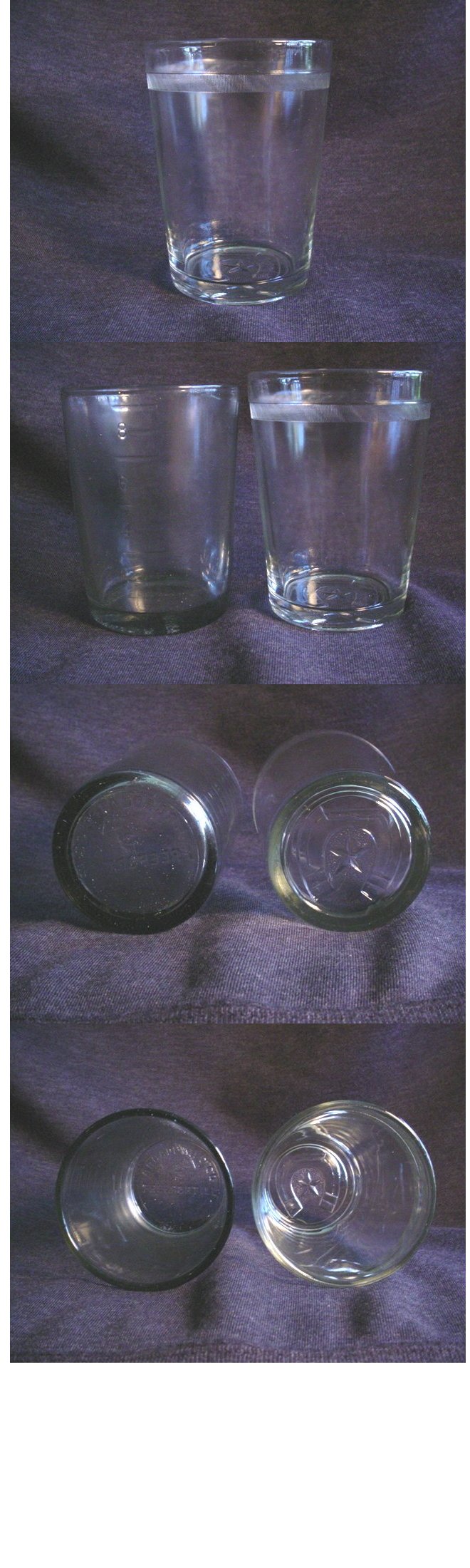

These are a good replacement for the Arcade No. 3 and many other coffee grinder catch cups. They measure 3 7/8" tall 2 3/4" across the top and 2 1/4" arcoss the base. An original Arcade No. 3 cup is 3 3/4" x 2 3/4" x 2 1/4". It is shown beside an original No. 3 catch cup when you click here. These are embossed with a Horseshoe and Star in the base and are textured near the top. I only have a few of these on hand so please refresh the page to make sure they are still available.

Item No. 100



$
25.00 (Includes Shipping by Priority Mail)




Ball Jelly Jar

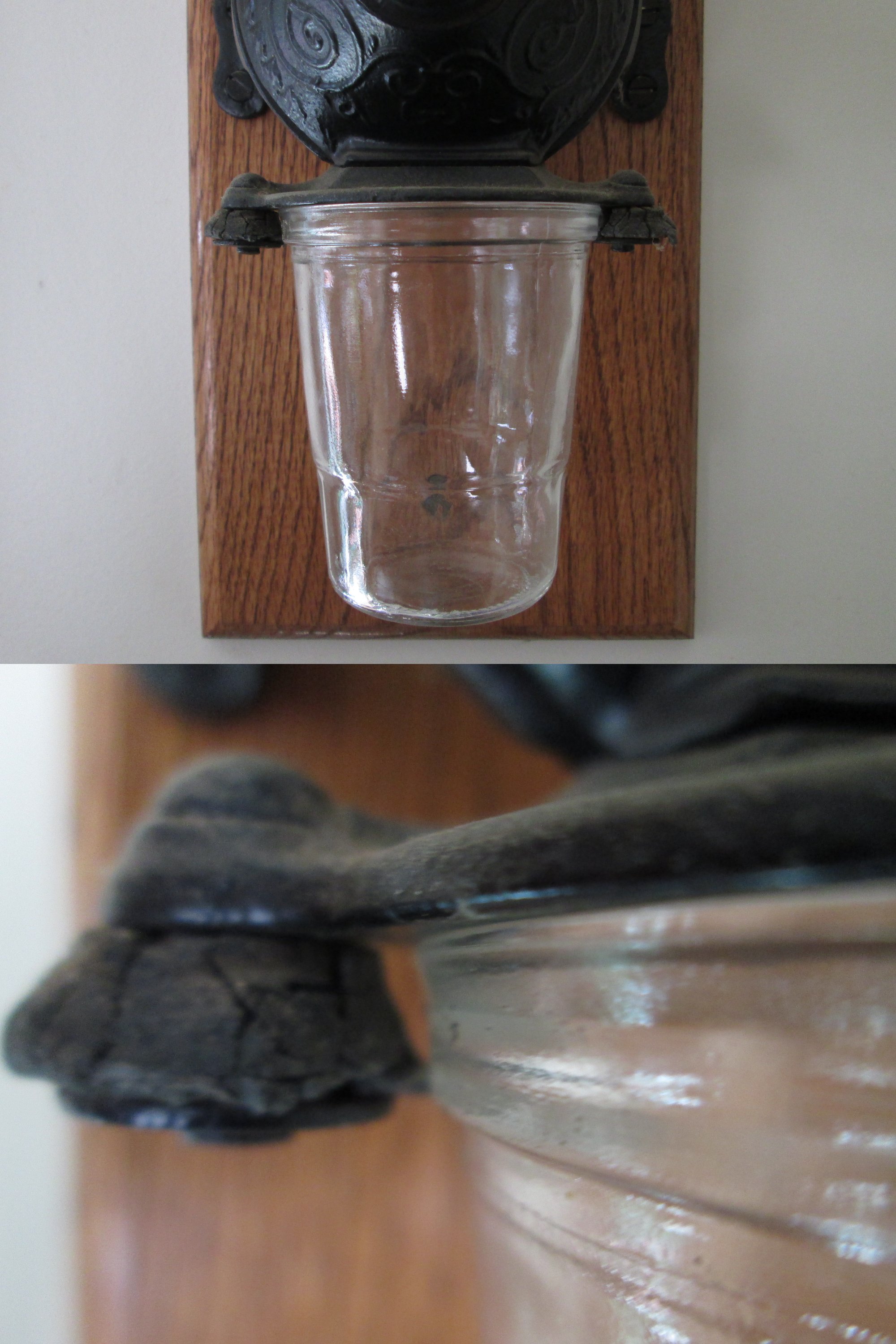

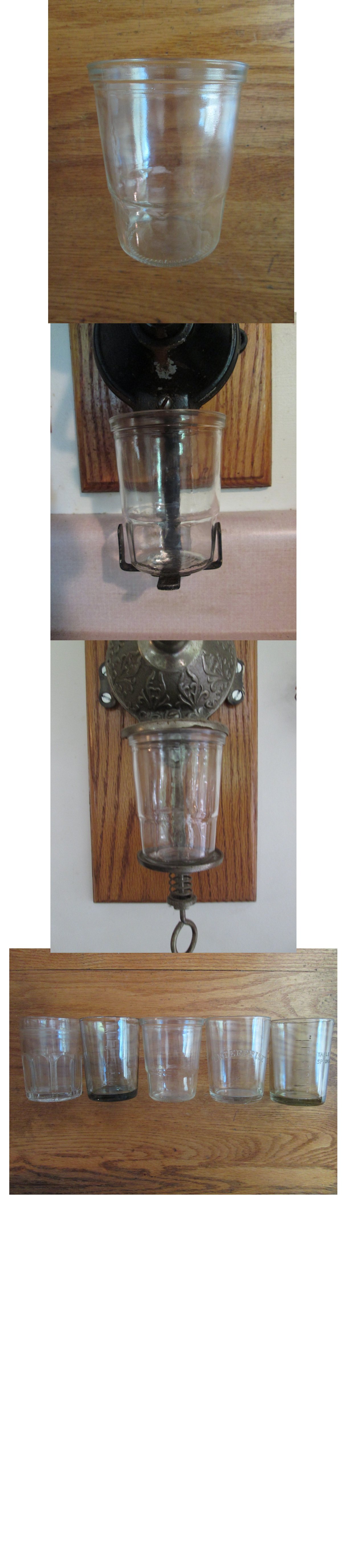

These measure right around 3 3/4" tall by 3" across the top and 2 1/4" across the base which is a slightly larger top diameter than an original No. 3 catch cup which measure 3 3/4" x 2 3/4" x 2 1/4". When you click on the picture it is shown mounted in an Arcade #25 and an Arcade #3, also in the middle of 4 original catch cups (Arcade early generic, Arcade No. 3, This Ball Jelly Jar, an Enterprise #100 and a Parker). This MAY work on an Arcade No. 1 if the lower section of the glass top lip was ground slightly but the rubber grommets are usually too brittle to use.(Click to See on a No. 1)

Item No. 111

$15.00 (Includes Shipping by Priority Mail)

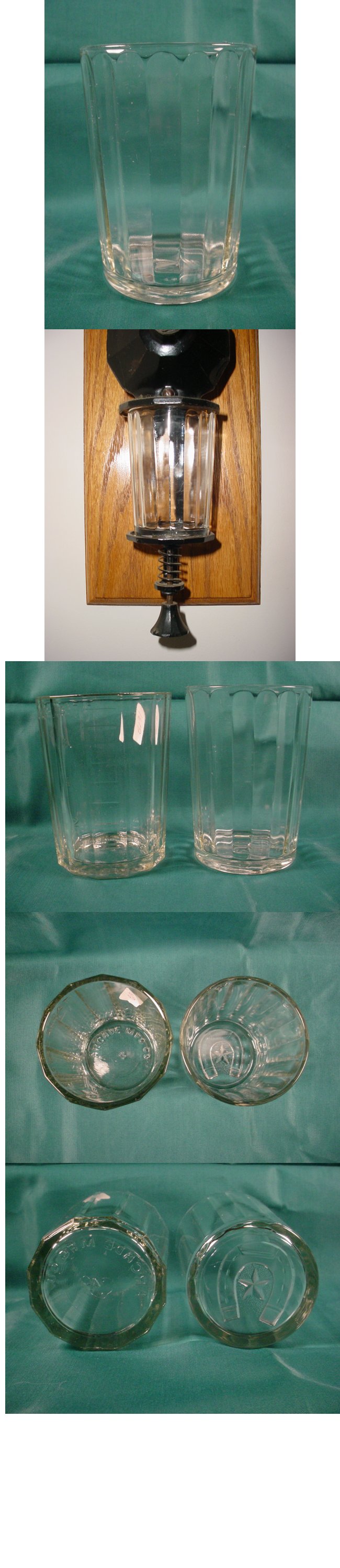

Horseshoe and star ribbed side

A good replacement for Arcade No. 4 or 40

Shown beside an original No. 4 catch cup when you click on the picture. These measure 3 3/4" tall and 2 3/4" across the top and are a very close match to an original #4 cup. I have a very limited supply of these.

Item No. 108

Temporarily out of stock

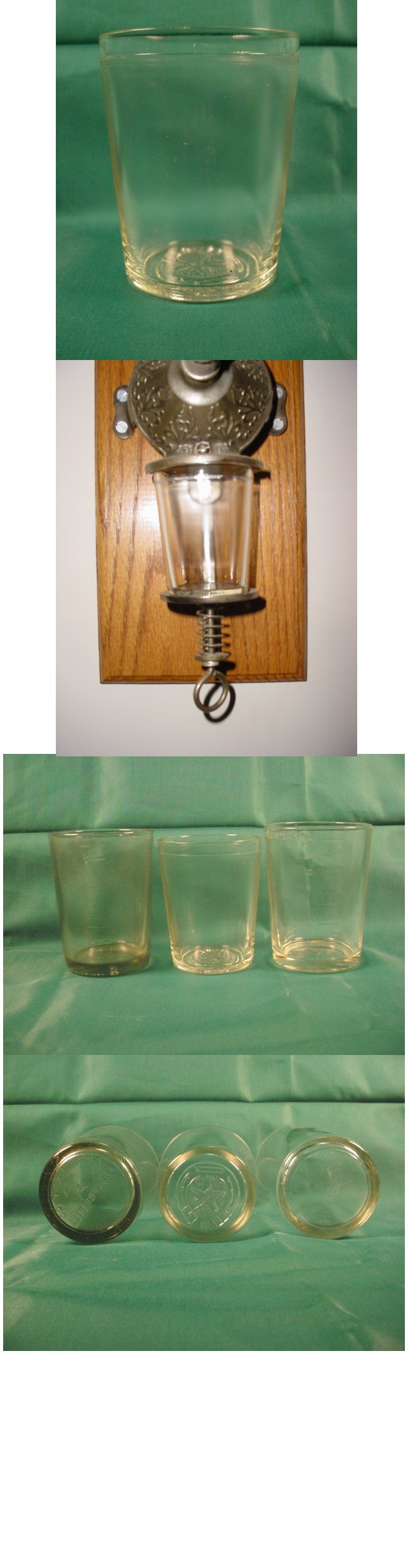

Horseshoe and star smooth side small mouth

Shown between two original No. 3 catch cups when you click on the picture. These measure 3 1/2" tall and 2 3/4" across the top. These are 1/4" shorter than an original Arcade cup so are not as tightly held in the spring mechanism as an original.

Item No. 109

Temporarily out of stock

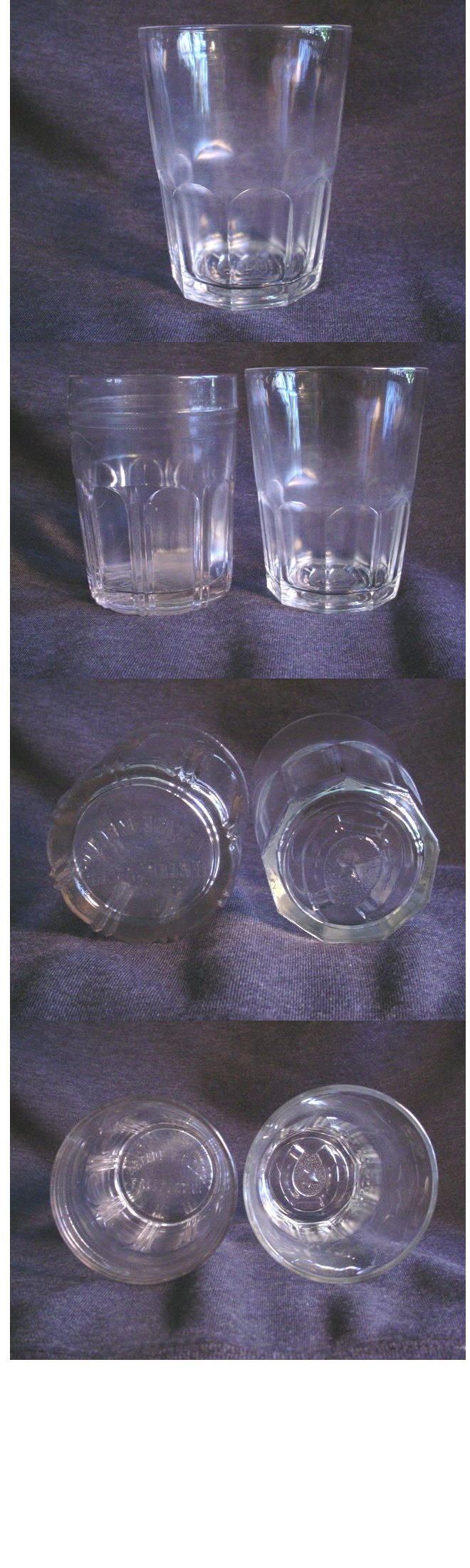

Horseshoe with panels

A good replacement for the early Arcade Catch cups

Shown beside an original Arcade catch cup when you click on the picture. These are a good match for the early paneled generic Arcade catch cups and work well on the Arcade No. 25, Golden Rule, Monarch and others that used the early style catch cups. Some cups have stars with the horseshoe and some have other symbols.

Item No. 101

Temporarily out of stock

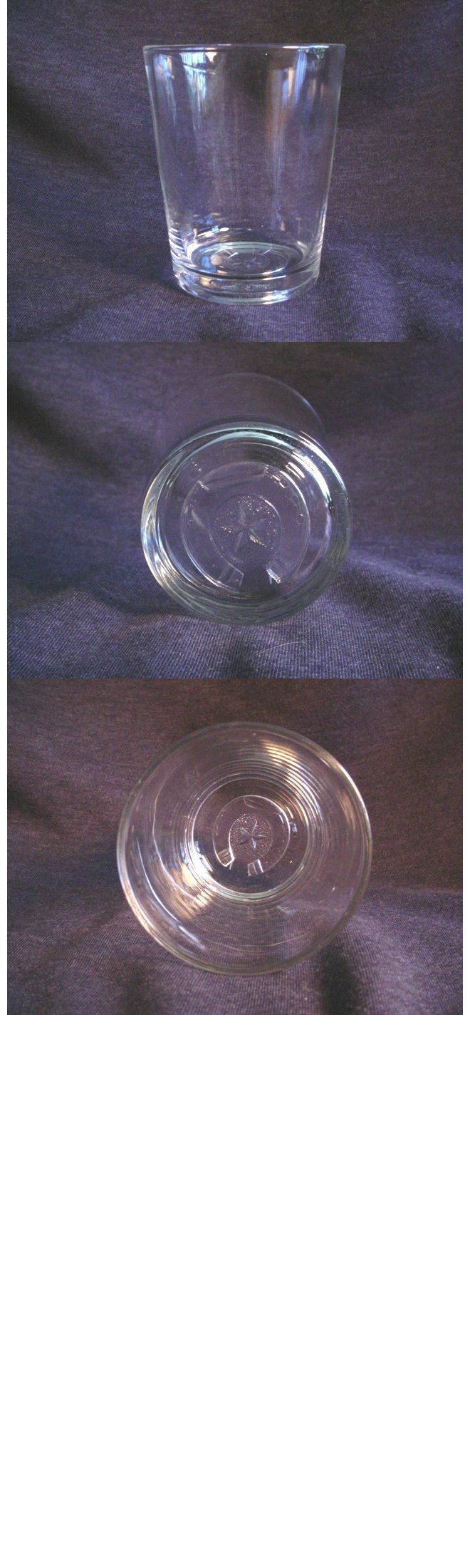

Horseshoe smooth side large mouth Catch Cup

These measure 3" across the top and will fit the same grinders as the cup with panels shown above. They are a little large for the later Arcade No. 3's as they will slightly over-hang on the cast iron lip where the base of the grinder meets the top of the glass, but they will fit some of the earlier No. 3's which were made with a wider base.

Item No. 102

Temporarily out of stock
Arcade No.1 Replacement Catch Cup

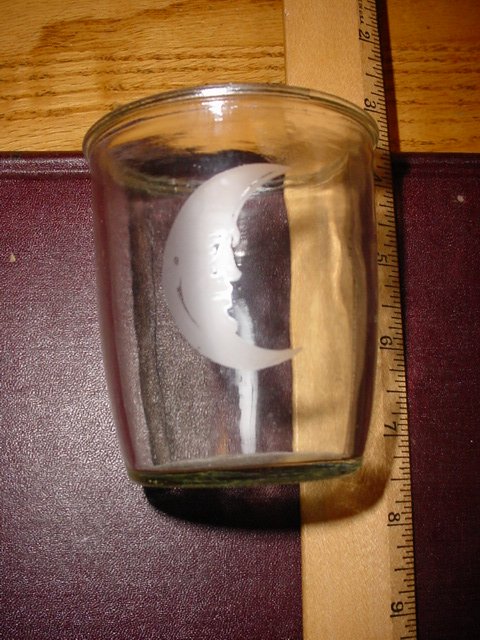

This is one of the few cups I have found that will actually fit and hang between the guides on an Arcade No. 1. I only have a few of these and I don't think I'll be able to locate more any time soon. I found one glass in this batch that has a man in the moon etched into the glass. If this would interest you rather than a plain one let me know.

Out of Stock



Catch Cups (Metal)

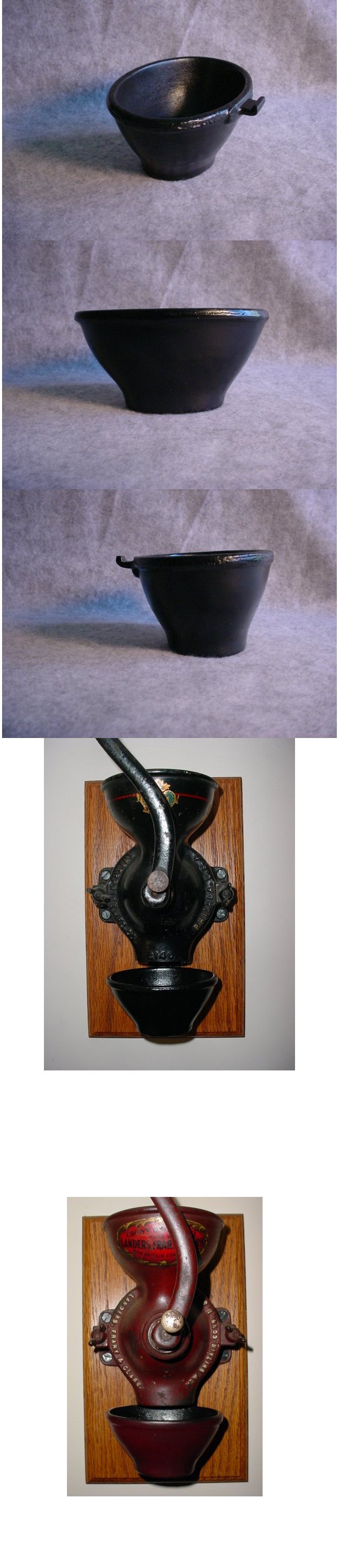

Oval Catch Cup

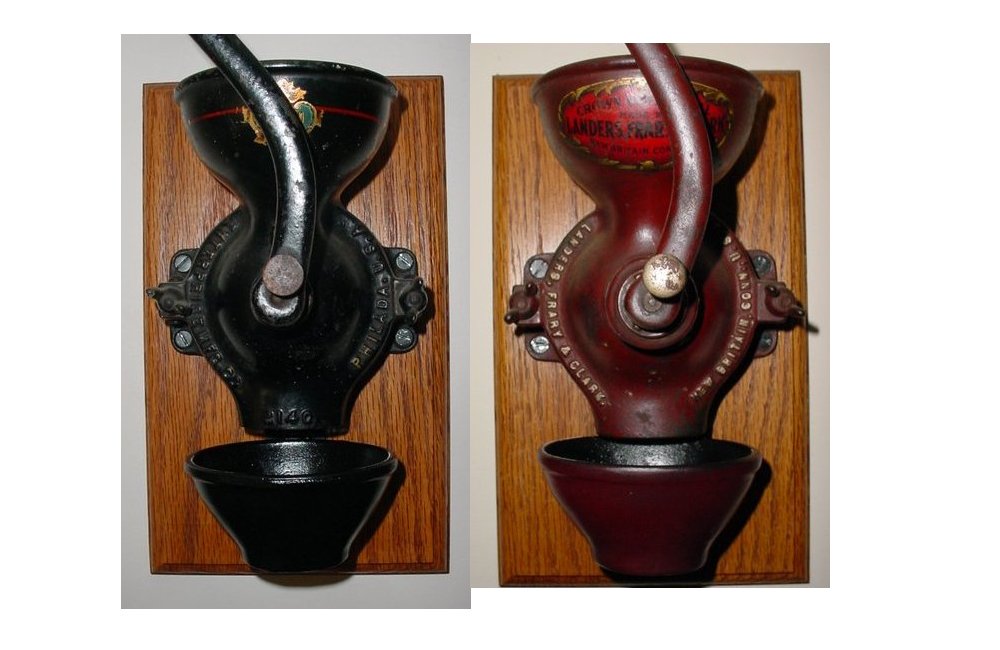

This is a cast alloy copy of the oval catch cup that fits the Enterprise 00 mill, Landers Frary and Clark 001 mill and maybe some others. It has the same look as an original and can be purchased with either a semi-gloss black enamel or in a red with a black interior for the  LF&C.



Temporarily out of stock

--------------------------

Temporarily out of stock

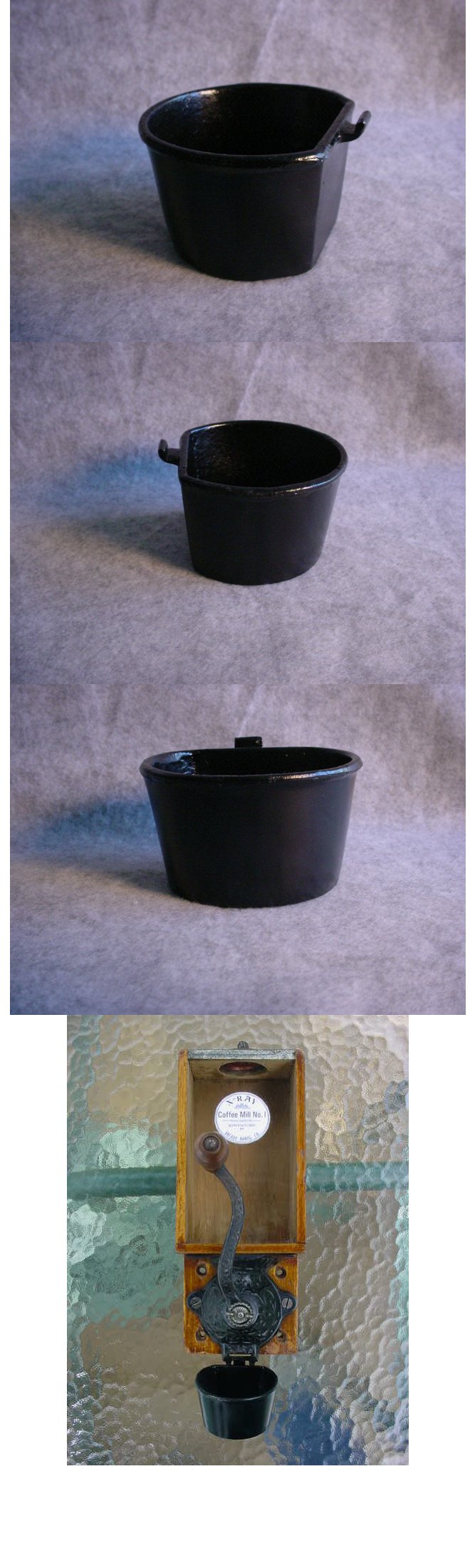

Flat Back Catch Cup

This is a cast alloy copy of the flat back catch cup that fits the Arcade X-Ray, Arcade Royal, Arcade Fruit Jar and maybe some others. It has the same look as an original and is finished in semi-gloss black enamel.

Temporarily out of stock



Lids

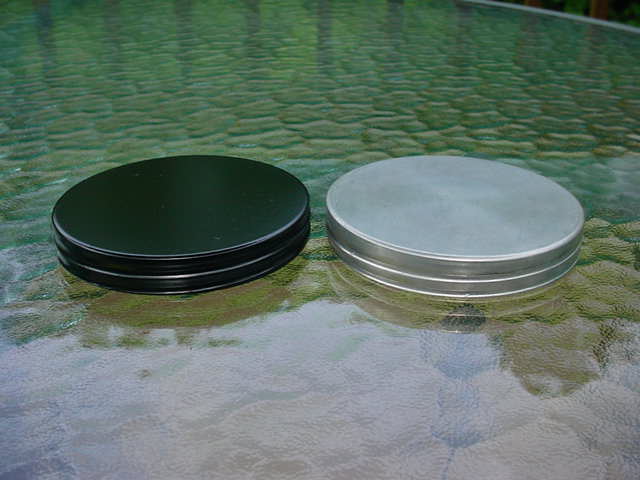

Replacement Lids For Most Glass Hopper Wall Mount Coffee Grinders

Available either painted in semi-gloss black enamel or in plain aluminum. Inside diameter 3-3/8"

These will fit No.'s 1,2,3 and 4 Arcade mills, Parker, Later Enterprise 100, Rev-o-noc, Wrightsville Peerless, Brighton Premier, Steinfeld, and some others that I'm sure I'll think of later.

Black

$13.50 (Includes Shipping)

Plain Aluminum

$12.50  (Includes Shipping)

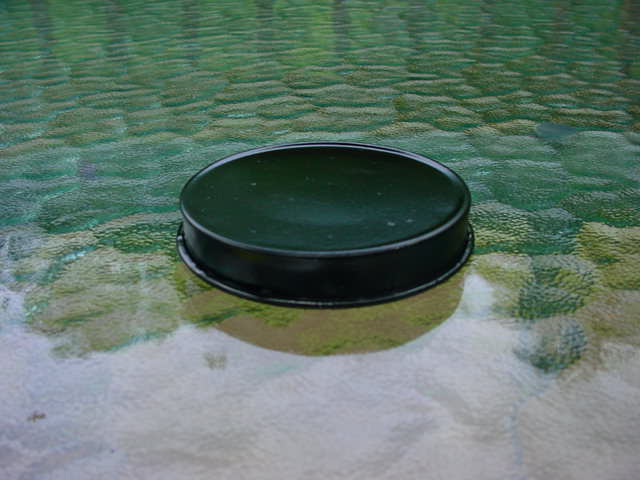

Replacement Lids for Golden Rule

Painted in semi-gloss black enamel.  Inside diameter 2-1/2"

These will fit snugly on a Golden Rule round top grinder. They may also fit the Bell, Monarch and some other mills.

Black

$9.50 (Includes Shipping)

Out of Stock
