Canister and Wall Mounted Coffee Grinders or Mills

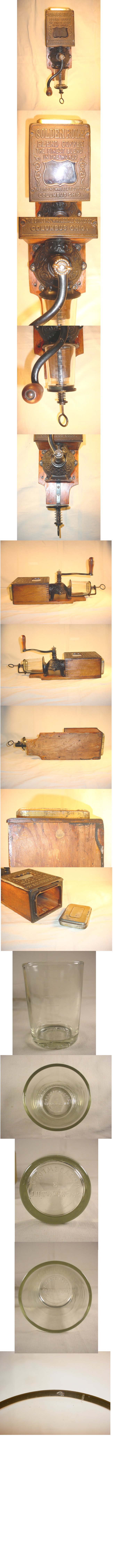

 This mill was manufactured by the Arcade Mfg. Co. of Freeport, Ill. for the Citizens Wholesale Supply Co. of Columbus, Ohio. Citizens sold medicines, candies, toiletries and their Golden Rule blend of coffee from 1900 to 1920. The coffee was so popular that they had Arcade make them this mill. The front reads

 GOLDEN RULE

BLEND COFFEE

 THE FINEST BLEND

IN THE WORLD

THE CITIZENS WHOLESALE SUPPLY CO.

COLUMBUS OHIO.

This mill was in fairly rough shape when I got it with almost 100years of dust and grease covering it so it was disassembled and all the internal metal parts were wire brushed down to bare metal and the external wooden parts were lightly sanded and refinished with an antique oil finish. It had a hole that someone had drilled in the back to hang it off a hook that I repaired. The metal plaque on the front retains it's original finish and it's original glass window that allows you to see how much coffee remains in the grinder. This mill is now in very good condition and ready to put back to work if you wish. It comes with an original Arcade No. 3 catch cup which was the one that was originally used with these mills. It has measure marks 2, 4, 6 and 8 on the front with hash marks in between for the odd numbers. The bottom is embossed with Arcade Mfg. Co. Freeport Ill. with a number 3 in the middle. The catch cup has a tiny flea bite on the upper lip and an inclusion (looks like a scratch but is from when it was made) in the glass that starts right below the embossed "r" in "Freeport Ill." and loops under it in the base. The square lid on top is original and is more rare than the round lid that is usually found on these.

Item No. 3876

On Hold

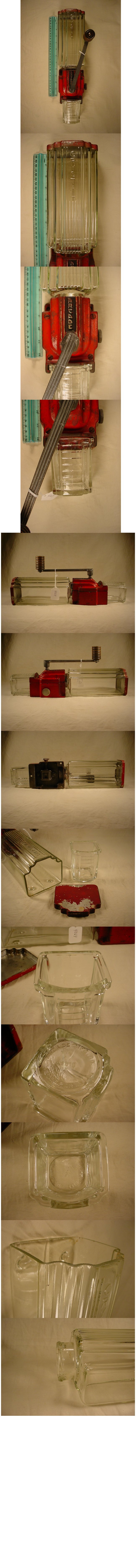

This is the last of the crystal series of coffee mills manufactured by Arcade. The 9010 was manufactured in the 1920's and has a very sleek, art deco look with vertical lines running throughout the mill. It has the majority of it's original finish but there are some small areas where surface rust had started to develop. These were oiled and cleaned to stop them from advancing. I installed a new gasket between the hopper and body as the old one was dried out and hardened. It is in overall very good condition with only the following flaws to report. There is some minor chipping around the top lip of the hopper that is most likely from when the glass was ground at the factory and there are two areas (front and back) of missing glass on the lower lip of the hopper where it is clamped into place by the body halves. These were most likely caused when the original gasket gave out and the hopper was allowed to move back and forth. They do not affect usability and are not even visible unless you look down into the hopper or disassemble the grinder. The lid is in good shape with no dents but does have original paint loss and some paint spots from when Grandpa painted the kitchen. The original catch cup is almost flawless and looks like it just left the factory. This mill has been thoroughly cleaned so it's ready to hang and use. This 9010 mill measures approx. 16" tall with the catch cup and a little less than 4" wide not including the adjustment knob.

Item No. 4069

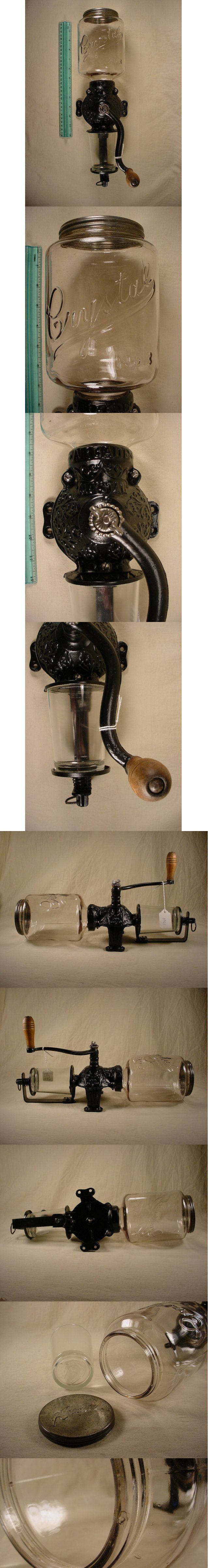

This Arcade Crystal No 3. had almost no original finish left when I got it so it was sandblasted and repainted in a semi-gloss black which is very close to an original finish. It has a glass hopper with no chips or cracks which is embossed with "Crystal No. 3".  It has the original "Arcade" embossed lid which has a few very light dents but screws on and off easily and is also embossed "Arcade Crystal" on the cast iron body. The gasket between the glass hopper and the cast iron body was replaced as it had dried out and was not holding the hopper as it should. The top lip of the hopper has a small bubble that burst through when it was being blown, it has been smoothed over so there are no sharp edges. It has a replacement horseshoe and star catch cup that is very close in size and style to the original cup. This mill has been thoroughly cleaned with anything not painted being wire brushed down to bare metal. It measures about 19" from the top to the bottom of the pull ring.

Item No. 1769

Sold

Item No. 4093

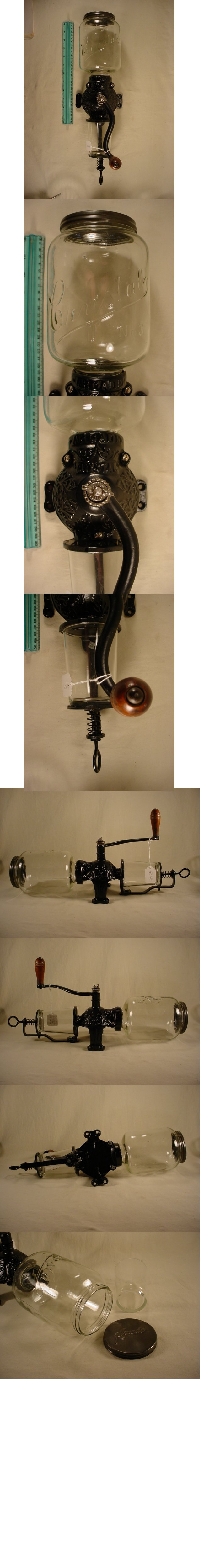

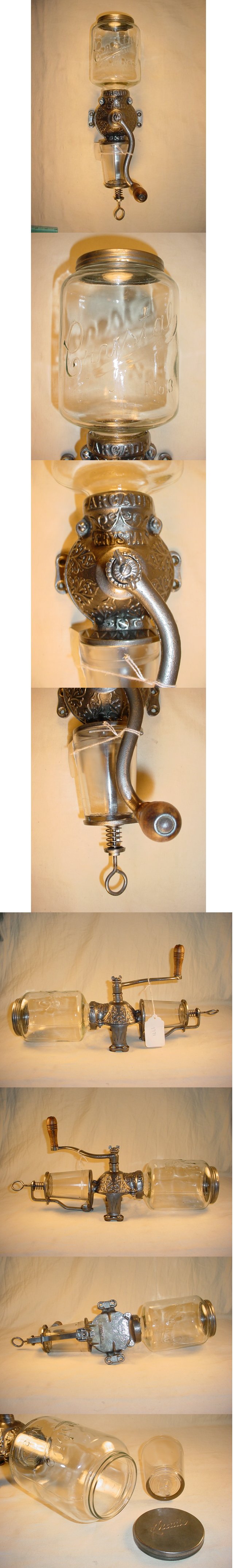

The original finish on this mill was almost completely gone so the mill was sandblasted down to bare metal with 100% of the original finish being removed, the cast iron was wire brushed to a high sheen and given a few coats of a clear enamel to give it an industrial look, (Arcade did make some No. 3's with a nickel finish and this looks very similar to those). It has it's original embossed "Arcade" lid that does have some small dents but screws on and off easily. The hoper is embossed "Arcade Crystal No. 3 and has some fine scratches and use marks as should be expected of a tool of this age. It is embossed "Arcade" and "Crystal" on the main body of the mill above the handle. I installed some new gasket material between the body and the hopper because the old one had dried out and was not holding the hopper in place as it should. It has an old horseshoe and star cup that fits well in place of the original catch cup. This entire mill has been thoroughly cleaned with the interior parts wire brushed to bare metal and the exterior carefully cleaned and/or refinished. It measures about 19" from the top to the bottom of the pull ring.

Item No. 1771

Sold

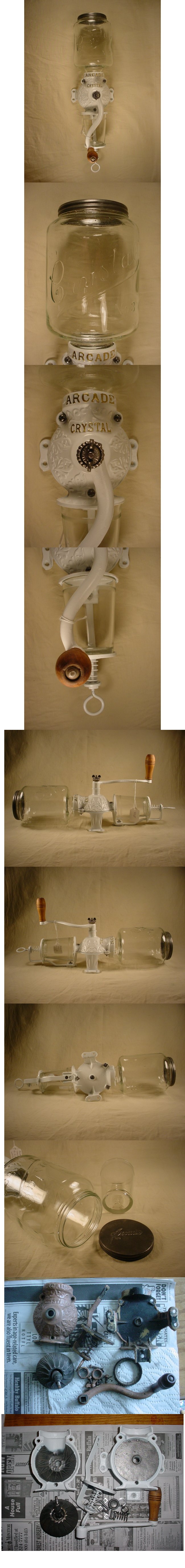

Manufactured by the Arcade Mfg. Co. of Freeport, Ill. this Crystal No. 3 coffee mill still has the majority of it's original finish left but had been painted over several times when Grandpa did the kitchen walls so it was cleaned to bare metal and repainted in a semi-gloss white. It has an embossed "Crystal No. 3" hopper with the original embossed "Arcade" lid. It is also embossed and highlighted in gold with "Arcade" and "Crystal" on the main body of the mill. I added a little extra gasket material between the body and the hopper because the old one had shrunken slightly with age and was not holding the hopper in place as it should. It has an old horseshoe and star catch cup replacing the original. There is some slight roughness where the base of the lid meets the hopper but this is from when it was manufactured and is not a defect. This mill has been thoroughly cleaned with the interior parts being wire brushed to bare metal and the exterior carefully cleaned and refinished. It measures about 19" from the top to the bottom of the pull ring.

Item No. 4068

Sold

This mill is actually a two for one deal. You are getting a functional coffee mill along with a piece of art. I'm not quite sure what to call the artistic style on this mill but it's somewhere between Pennsylvania Dutch and tramp art. The mill was manufactured by the Arcade Mfg. Co. of Freeport, Ill. It has it's original glass hopper embossed with "Crystal No. 4 in cursive script and panels which follow through to the cast iron body that is embossed with "Arcade". The lid is original and is embossed "Arcade" in cursive script. This mill has some wear to the paint that was added to the glass hopper and a few spots of paint that were slopped on when grandpa painted the kitchen but the black underneath is the original finish and is in good condition with minimal paint loss. All internal and external parts have been wire brushed or cleaned as needed. I lightly cleaned the outside of the hopper so there was no additional paint loss. This mill  is equipped with an old jelly jar as a replacement catch cup so it's ready to hang and use.

Item No. 4026

Sold

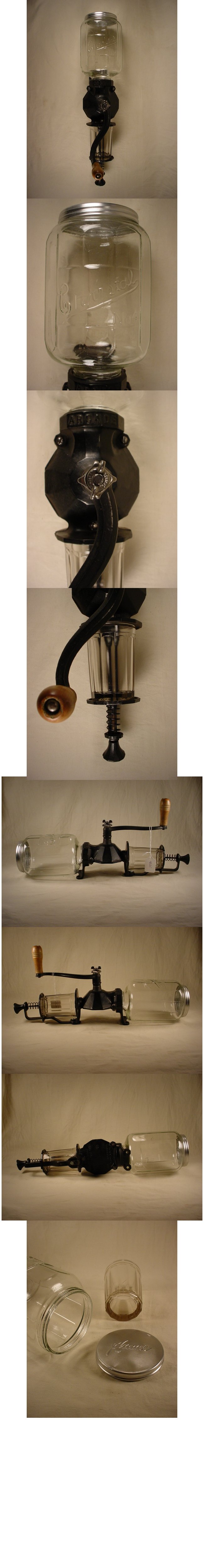

Manufactured by the Arcade Mfg. Co. of Freeport, Ill. this No. 40 Arcade coffee mill has a clear glass hopper embossed with "Crystal No. 4" in cursive script and panels which follow through to the cast iron body that is embossed with "Arcade". The lid is original and is embossed "Arcade" in cursive script. The original gasket between the hopper and the cast iron body was still in good shape and only needed a slight amount of extra material added to hold the hopper tightly in place. The screw and nut that hold the catch assembly to the body are replacements but these are not normally used as the hole becomes a third mounting point. This mill had some light surface rust on the exterior of the body but a coat of Liquid Gold and a light brushing cleaned it up well enough that I decided to leave it as is. All internal and external parts were wire brushed or cleaned as needed so it's ready to hang and use.

Item No. 4025

The Crystal No. 1 was the first glass hopper mill produced by Arcade. This mill has it's original un-embossed lid and hopper and a replacement catch cup.

Item No. 3632

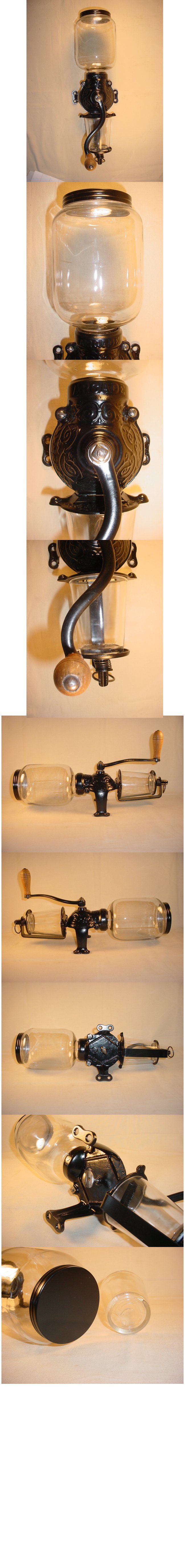

Although this mill is identified as a No. 1 mill on the embossing above the catch cup, I refer to these as an "improved" or a "1.5" No. 1 Arcade coffee mill. I can only assume that Arcade discovered that the original No. 1 design which used rubber grommets to hold the catch cup needed improvement so they removed the grommets and added a spring loaded catch assembly.

This mill was a rusty mess with a rusted through lid so it was cleaned to bare metal and repainted in semi-gloss enamel. It had new gasket material between the glass hopper and the body and a replacement lid was added along with a horseshoe catch cup. The grind is adjusted with the screw that goes through the back of the grinder.

Item No. 3880

Sold

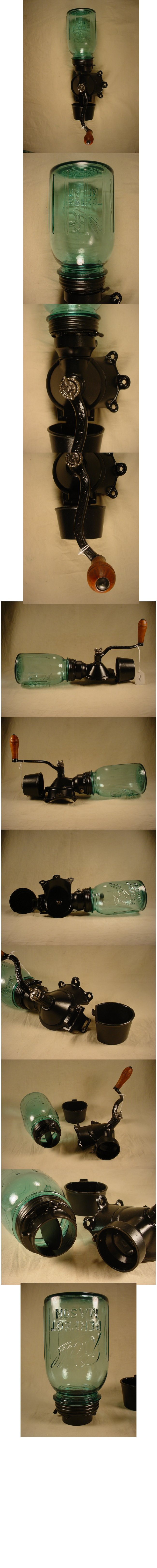

This is the first of two versions of the rare Fruit Jar mill made by Arcade. Both models will take either a pint, quart or two quart canning jar with a threaded lip. These are hard to find complete with all the original parts as this one is. The original finish was almost non existent except for a small area that remained on the back so it was sandblasted and repainted in a semi-gloss black that is very close to the original finish.

The screw on lid of the canning jar has a shut off flap that allows you to refill the jar and flip it onto the grinder. It is secured to the body of the mill with a round thumb screw that tightens against it through the side of the body. The flap is then opened to allow the beans to flow through to the grinder

It measures right around 15" tall with a quart sized fruit jar.

Item No. 4065

This mill was manufactured by the Arcade Mfg. Co. of Freeport, Ill. around 1900. This X-Ray mill was covered with green paint, the back board had splits through the mounting holes and was badly chipped on the sides so the back board was replaced, the rest of the wood was stripped then lightly  sanded and finished with a golden oak stain and an antique oil finish. The glass viewing window was broken so it was replaced with an older pane of glass which now has a reproduced Arcade X-Ray label attached. This mill has it's original japanned finish on the exterior of the cast iron and the mill was completely disassembled and cleaned to like new condition with all the interior parts wire brushed to bare metal. A washer was placed between the handle and the body of the grinder to increase the clearance between the handle and the hopper holding the coffee. (Many of the x-ray mills have the two notches or rub marks where the handle would hit the front of the box when rotated). The wing nut is not an original Arcade but is from another make of coffee grinder from the same era and works well. This mill comes equipped with a reproduction catch cup which is almost identical to an original. The length of the wood portion is right around 11 1/2" (14 3/4" long with the catch cup hanging at the bottom), 4 3/4" wide and 3 1/2" deep.

Item No. 4087

Sold

This is an Arcade No. 25 coffee grinder that was produced sometime around 1910 - 1930 by Arcade in Freeport, Illinois. It has a cast iron body with Arcade embossed on the neck and Arcade 25 embossed on the hopper along with scrollwork on the arm of the handle. The lid is an original embossed Arcade that fits well and screws on and off easily. An older horse shoe cup with panels is used in place of the original catch cup which was long gone by the time I got it. The original finish is present and has some minor paint loss but was cleaned, oiled and left as is. All interior parts have been thoroughly wire brushed to bare metal so it's once again ready to grind. The original gasket that is between the glass hopper and the body was present but needed to have a little additional material added as it had hardened and no longer held the hopper in place as it should. A washer was added between the handle and body to ensure that the handle will rotate without touching the glass. There are some air bubbles in the glass hopper as is normal with a piece of this age but it has no chips or cracks. . This is one of the shortest of the Arcade wall mount mills at 15 1/2" so these can be mounted under most modern day cabinets (with the cup mount overhanging the back-splash.)

Item No. 4090

Arcade made the #25 mills in several slightly different versions. Although they all had the same cast iron body style, some are embossed on the neck below the hopper with "Arcade", but others have no embossed name at all and yet others are found with the names "Atwood", or "Lees" embossed. Some were produced with "Arcade 25" embossed hoppers and others have plain hoppers. No one seems to know exactly why this was, but I suspect that Arcade may have manufactured some of these mills for distribution by other companies.

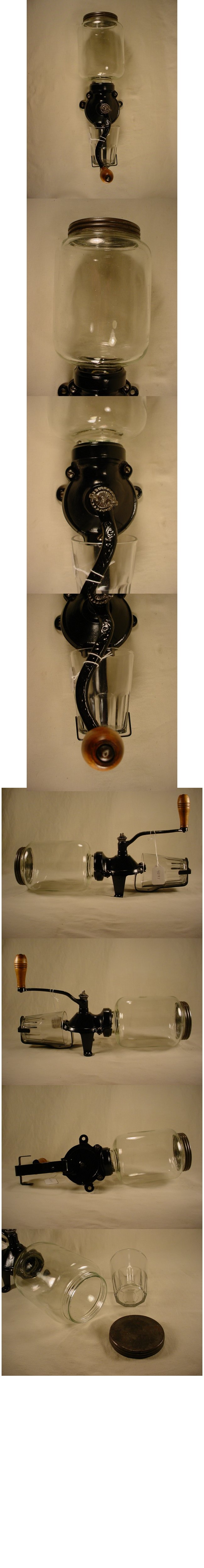

This is an Arcade No. 25 coffee grinder that was manufactured by Arcade in Freeport, Illinois. It had almost none of it's original finish left by the time I got it so it was sandblasted to bare metal and repainted in a semi-gloss black which is very close to the original color. The grinder body is plain with only the handle having some fancy scrollwork. The original gasket that is between the glass hopper and the body was present but needed to be replaced as it had hardened and no longer held the hopper in place as it should. The glass hopper has no chips or cracks. All internal parts were wire brushed to bare metal and the exterior and glass were thoroughly cleaned so it's ready to grind. This mill has an old lid that may not be original to the grinder but is from the same era and an old horseshoe embossed catch cup. This is one of the shortest of the Arcade wall mount mills at 15 1/2" so these can be mounted under most modern day cabinets (with the cup mount overhanging the back-splash.)

Item No. 4091

 2 - 8

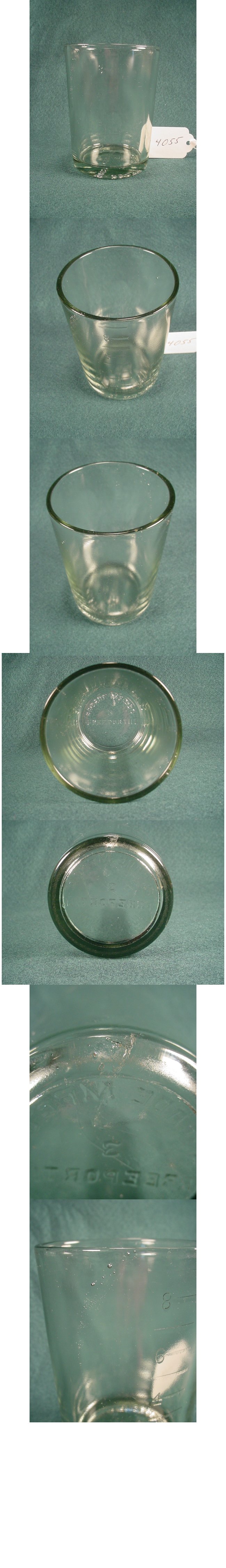

This is an early style Arcade Crystal No. 3 Catch Cup that was supplied with the No. 3 coffee grinders when they were new. Not very many of these have survived through the years as they were often broken and rather than pay the 15¢ that Arcade wanted for a real replacement glass they would just substitute any glass they had which would fit. It has measure marks 2, 4, 6 and 8 on the front with hash marks in between for the odd numbers. The bottom is embossed with Arcade Mfg. Co. Freeport Ill. with a number 3 in the middle. There are no chips or cracks on this glass, but here is a small inclusion that looks like a scratch starting above the "3" in the base and running to the outside edge. This and the bubbles present in the glass are common with these cups and is from when it was produced. The glass is clear, but the glass on these earlier cups tends to have a slightly darker tint to it. This cup as well as all original Arcade cups measures approximately 3 3/4 inches tall.

 2 -14

This is the later style of original catch cup that Arcade used on the Crystal No. 3 mills. It has measure marks 2 - 14 on the front with hash marks in between for the odd numbers and Tablespoons written across the top. The bottom is embossed with Arcade Mfg. Co. Freeport Ill. with a number 3 in the middle. There are no chips or cracks on this glass, just some minor scratches and the usual swirl marks and some straw marks from the manufacturing process. There are some heavier straw marks in the base of the cup. None of these are cracks and most likely formed during the cooling process.

Item No.4043

 2 - 14

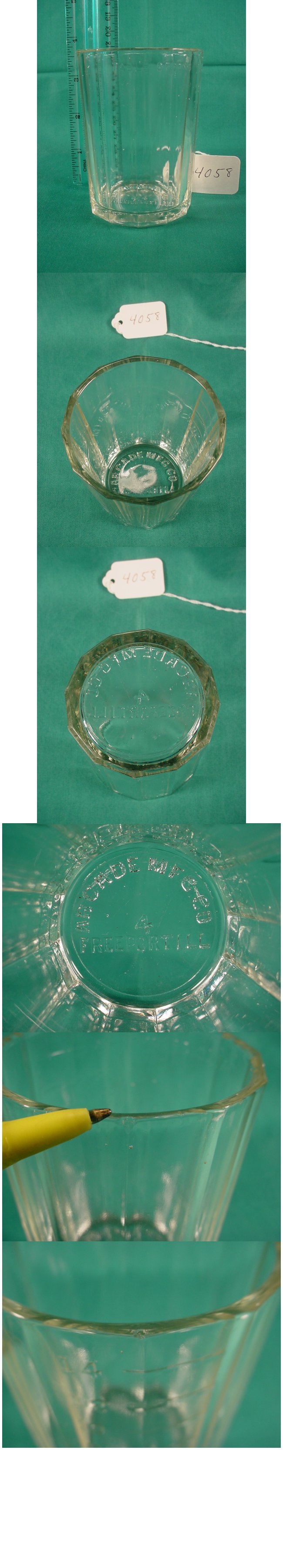

This is an original Arcade Crystal No. 4 or No. 40 coffee grinder catch cup. Even fewer of these are found as the production runs of the No.'s 4 and 40 were much smaller than the No. 3's. It has measure marks 2 - 14 on the front with hash marks in between for the odd numbers and Tablespoons written across the top. The bottom is embossed with "Arcade Mfg. Co" with a number "4" in the middle and "Freeport, Ill" below that. This cup has a few of t he usual straw marks and bubbles in the glass from the manufacturing process and there is a small chip on the back of one of the ridges and another tiny spot on the front that I believe is from when it was made. This cup as well as all original Arcade cups measures approximately 3 3/4 inches tall.

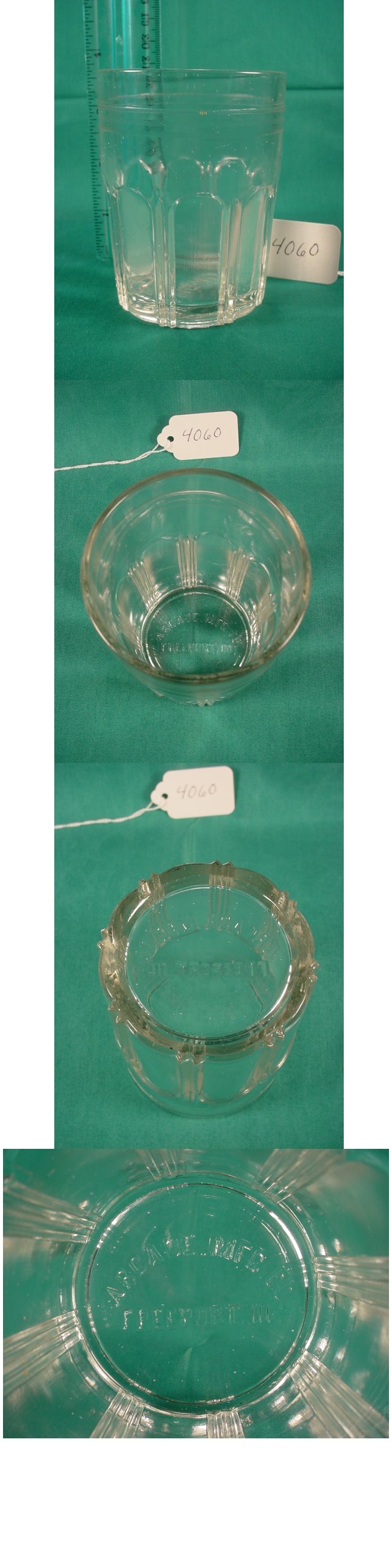

I refer to the two cups shown as Arcade "Generic" cups as they was used on many grinders manufactured by Arcade. This is the earlier version of the cup with the writing on the base more towards the center and the base itself is slightly more concave than the later "Generic" cup. In addition to the Arcade 25's this cup also came with the Golden Rule, Bell, and Monarch mills. This cup has no measure marks on the side, and is only identified by the "Arcade Mfg. Co. Freeport Ill." that is embossed in the base of the cup. As is usual with glass of this age there are the normal swirls and straw marks, but there are no chips or cracks to report on this cup. This cup as well as all original Arcade cups measures approximately 3 3/4 inches tall.

Item No.  4060

Sold

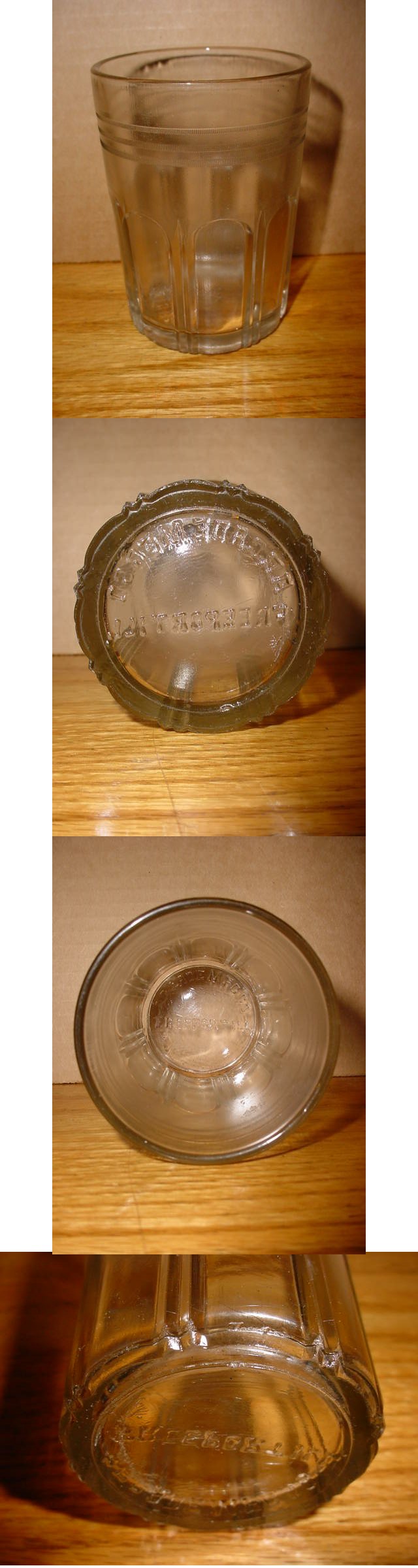

This is the later of the two Arcade "Generic" cups  used on many grinders manufactured by Arcade. This later version of the cup has the writing on the base more towards the outer edge and the base itself is slightly less concave than the earlier "Generic" cup. In addition to the Arcade 25's this cup also came with the Golden Rule, Bell, and Monarch mills. This cup has no measure marks on the side, and is only identified by the "Arcade Mfg. Co. Freeport Ill." that is embossed in the base of the cup. As is usual with glass of this age there are the normal swirls and straw marks, and this cup also has some very minor chips near the base edge. This cup as well as all original Arcade cups measures approximately 3 3/4 inches tall.

Item No.   2203
